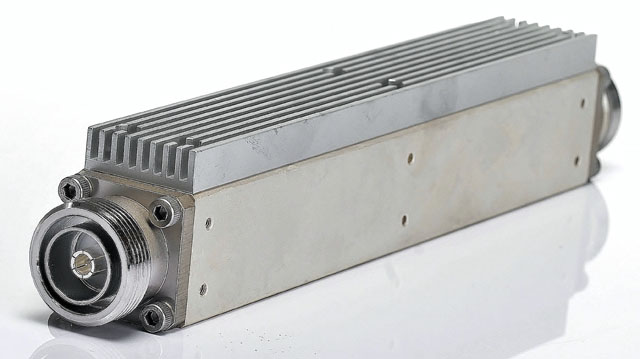

Image for Lowpass Filter
Print Search Result

Cavity Filter / Lowpass Filter

Type

Frequency Band

Application

Custom Design

Search Results

Part Number Passband (GHz) Ins Loss Rejection Return Loss Power Temperature Connector Drawing Quote Cart
G90-086/65.LF 2.0 Max ; 1.0 Typ 55 Min@DC~26110MHz
35 Min@30500~34000MHz
18.0 pdf
JFCL0010T0450SF 0.01~0.450 0.9 12 Min @ 620MHz 30 Min @ 700MHz ~ 1.0GHz 35 Min @ 1.05GHz~2GHz 18 120 -40~+85 SMA pdf
JFCL0010T0500NF 0.01~0.500 0.9 30 Min @ 800MHz~1.0GHz 18 120 -40~+85 N-f pdf
JFCL0175NF 0.140~0.175 14 150 -30~+70 N Female/N Male pdf
