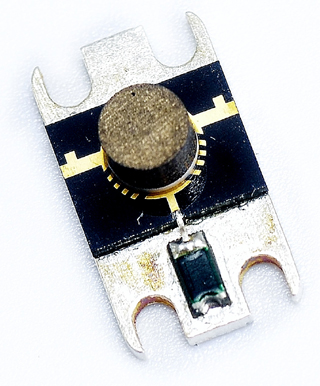

Image for Microstrip
Print Search Result

RF Isolator / Microstrip

Type

Frequency Band

Application

Custom Design

Search Results

Part Number Band (GHz) Bandwidth (GHz) Isolation Ins Loss VSWR Avg Power Drawing Quote Cart
JIS5000T6000G1 5.000~6.000 Full 18.0 0.50 1.28 10/10/- pdf
JIS5600T7400G1 5.600~7.400 Full 20 0.50 1.28 10/10 pdf
JISC6500T9600-10 6.500~9.600 Full 16.6 0.6 pdf
2IMC-8.0-1-8.05BW38.51W1 6.500~9.600 Full 16.6 0.6 pdf
JIS7000T7500G0 7.000~7.500 Full 20 0.50 1.25 5/0.5 pdf
2W8NK-1 8.500~9.600 Full 20.0 0.5 1 pdf
JIS8500T9500G0 8.500~9.500 Full 19 0.50 1.25 5/0.5 pdf
JIS8800T10K1G0 8.800~10.10 Full 20 0.50 1.25 5/0.5 pdf
JIS8800T9800G0 8.800~9.800 Full 19 0.50 1.25 5/0.5 pdf
JIS9000T10K0G0 9.000~10.00 Full 18 0.50 1.28 5/0.5 pdf
JIS9200T9900G1 9.200~9.900 Full 19 0.50 1.25 10/10 pdf
JIS10K0T11K5G0L 10.00~11.50 Full 20 0.50 1.25 10/1 pdf
JIS10K1T11K0G2R 10.00~11.00 Full 18 0.50 1.28 20/20 pdf
JIS10K4T11K3G1 10.40~11.30 Full 18 0.60 1.30 10/10 pdf
JIS11K9T12K2G0 11.90~12.20 Full 20 0.50 1.25 5/0.5 pdf
2IMC-14-1-BW14.29 13.000~15.000 Full 20 0.6 2 pdf
JIS13K2T15K0G0 13.20~15.00 Full 16 0.70 1.30 1/0.5 pdf
JIS13K5T14K75G0 13.50~14.75 Full 16 0.70 1.30 1/1 pdf
JIS14K0T15K0G0 14.00~15.00 Full 19 0.50 1.30 5/0.5 pdf
JISC14K0T17K0-10 14.000~17.000 Full 18.0 0.7 2 pdf
2IMC-15.75-1-15.5BW19.35 14.000~17.000 Full 18.0 0.7 2 pdf
2IMC-14.8-1TS-15.05BW7.31 14.500~15.600 Full 20.0 0.50 10/1/- pdf
JIS18K0T20K0G0 15.00~17.50 Full 17 0.80 1.38 1/1 pdf
JIS15K0T17K5G1 15.00~17.50 Full 17.0 0.70 1.30 10/10/- pdf
JC2S15K7T17K7G1 15.700~17.700 18 Min (2->1) ; 30 Min (3->2) 0.6 Max (1->2) ; 1.1 Max (2->3) 10 pdf
JIS16K0T17K0G1 16.00~17.00 Full 19 0.60 1.30 10/10 pdf
JIS16K5T17K5G0 16.50~17.50 Full 18 0.60 1.35 1/1 pdf
2IMC-18-2BW11.11W3FM 17.000~19.000 Full 17.0 0.9 4 pdf
JISM17K3T17K5-6-A 17.300~17.480 Full 20.0 0.7 2 pdf
JISM17K3T17K5-6-B 17.300~17.480 Full 20.0 0.7 2 pdf
JIS24K5T28K4G0 24.50~28.35 Full 18 1.20 1.40 0.5/0.5 pdf
2IMC-26.0-1-26.25BW5.7W4FM 25.500~27.000 Full 18.0 0.9 4 pdf
JIS27K0T30K0G0 27.00~31.00 Full 15 1.20 1.40 1/1 pdf
JISM27K0T31K0 27.000~31.000 Full 19.0 1.3 1 pdf
JIS27K0T31K0G0 27.00~31.00 Full 15 1.20 1.40 0.5/0.5 pdf
JIS29K6T30K6G0 29.60~30.60 Full 15.6 1.20 2 pdf
JIS30K5T31K3G0 30.50~31.30 Full 18 1.00 1.40 0.5/0.5 pdf
JIS33K5T34K5G0 33.50~34.50 Full 17 1.20 1.40 0.5/0.5 pdf
4IMS35-1C-OEM 34.000~36.000 Full 20.0 1.0 2/-/- pdf
JIS34K5T35K6G0 34.50~35.60 Full 15.6 1.20 1.40 2 pdf
JIS34K5T35K6G0C 34.50~35.60 19.0 1.20 1.35 2 pdf
4IMM36-3 35.0~37.0 Full 20.0 0.9 2 pdf
