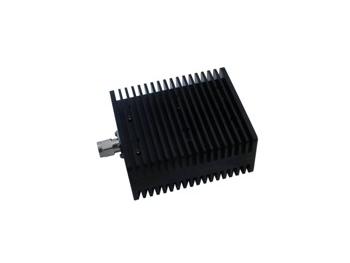

Termination / Low PIM Termination

Type

Frequency Band

Application

Custom Design

Search Results

Part Number Band(GHz) VSWR PIM (dBc) Power Avg Temperature Connector Drawing Quote Cart
J-N-50JR-5W 0~3.00GHz 1.15:1 5 -20~+65 SMA-m pdf
J-N-50JR-10W 0~3.00GHz 1.15:1 10 -20~+65 SMA-m pdf
J-N-50JR-30W 0~3.00GHz 1.2:1 30 -20~+65 N-m pdf
J-N-50JR-100W 0~3.00GHz 1.16:1 100 -20~+65 N-m pdf
J-N-50JR-25W-3 0~3.00GHz 1.2:1 25 -20~+65 N-m pdf
J-N-50JR-10W-3 0~3.00GHz 1.2:1 10 -20~+65 N-m pdf
J-D-50JR-25W-3 0~3.00GHz 1.2:1 25 -20~+65 7/16-m pdf
J-D-50JR-10W-3 0~3.00GHz 1.2:1 10 -20~+65 7/16-m pdf
J-4.3-10-50JR-50W 0~3.00GHz 1.15:1 50 -40~+85 4.3-10 J pdf
MTL-100-460-4F-160 0.400-6.000 ≤1.2 ≤-160dBc@2*43dBm 100 -35~+65 4.3-10 Female pdf
MTL-200-460-4F-160 0.400-6.000 ≤1.2 ≤-160dBc@2*43dBm 200 -35~+65 4.3-10 Female pdf
MTL-05-460-4F-153 0.400-6.000 ≤1.2 ≤-153dBc@2*33dBm 5 -35~+65 4.3-10 Female pdf
MTL-10-460-4F-153 0.400-6.000 ≤1.2 ≤-153dBc@2*33dBm 10 -35~+65 4.3-10 Female pdf
MTL-50-460-4F-153 0.400-6.000 ≤1.2 ≤-153dBc@2*43dBm 50 -35~+65 4.3-10 Female pdf
